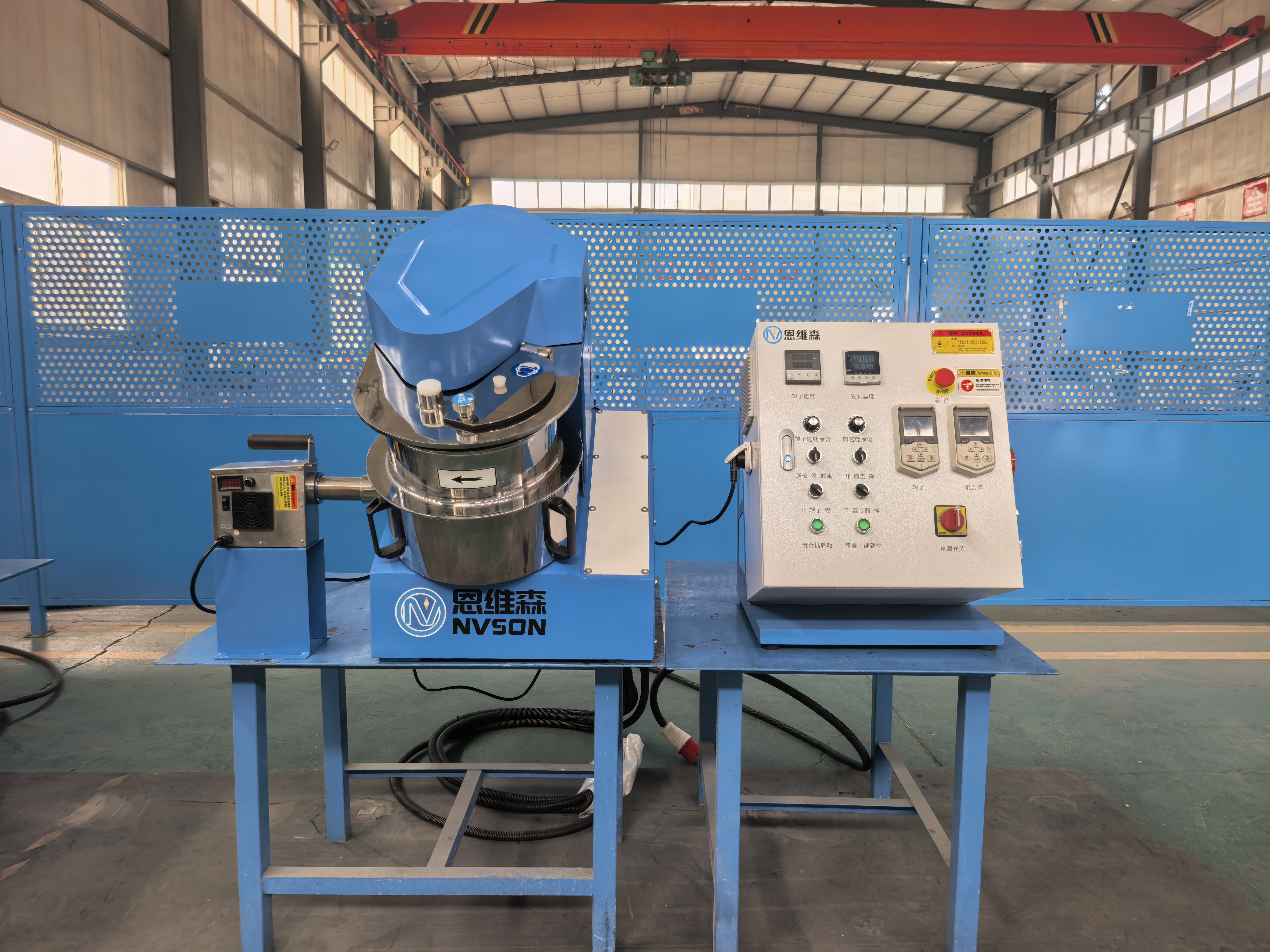

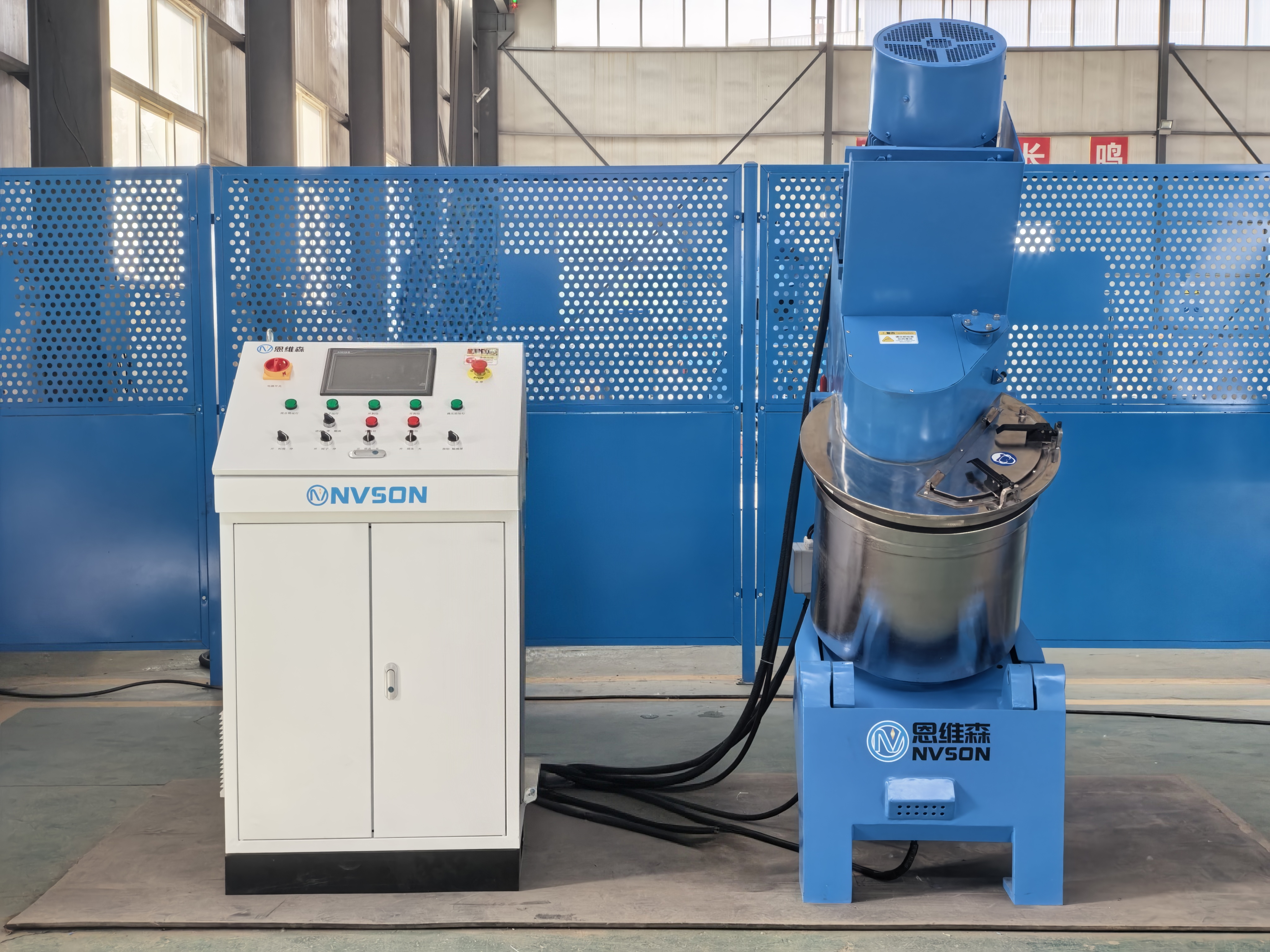

Uniform-Granule Tilting Mixing Granulator
Many advanced material manufacturers face a persistent quality headache: inconsistent granule size, uneven ingredient distribution and fragile particles that break easily during screening, conveying and subsequent sintering. For lithium battery raw materials, ceramic powder, refractory aggregates and catalyst carriers, granule uniformity is not just a quality indicator — it directly decides the final performance of downstream products. Even minor differences in granule size and internal composition will lead to unstable sintering density, inconsistent chemical reactivity, low finished product yield and higher reject rates. Traditional vertical granulators and drum granulators often create dead mixing zones.
Materials in different positions receive uneven rolling and shearing force, generating a wide particle size spectrum with excessive fine dust and oversized agglomerates. The uniform-granule tilting mixing granulator is engineered to solve this core pain point, delivering tightly controlled, repeatable granule quality for high-spec industrial powder processing.

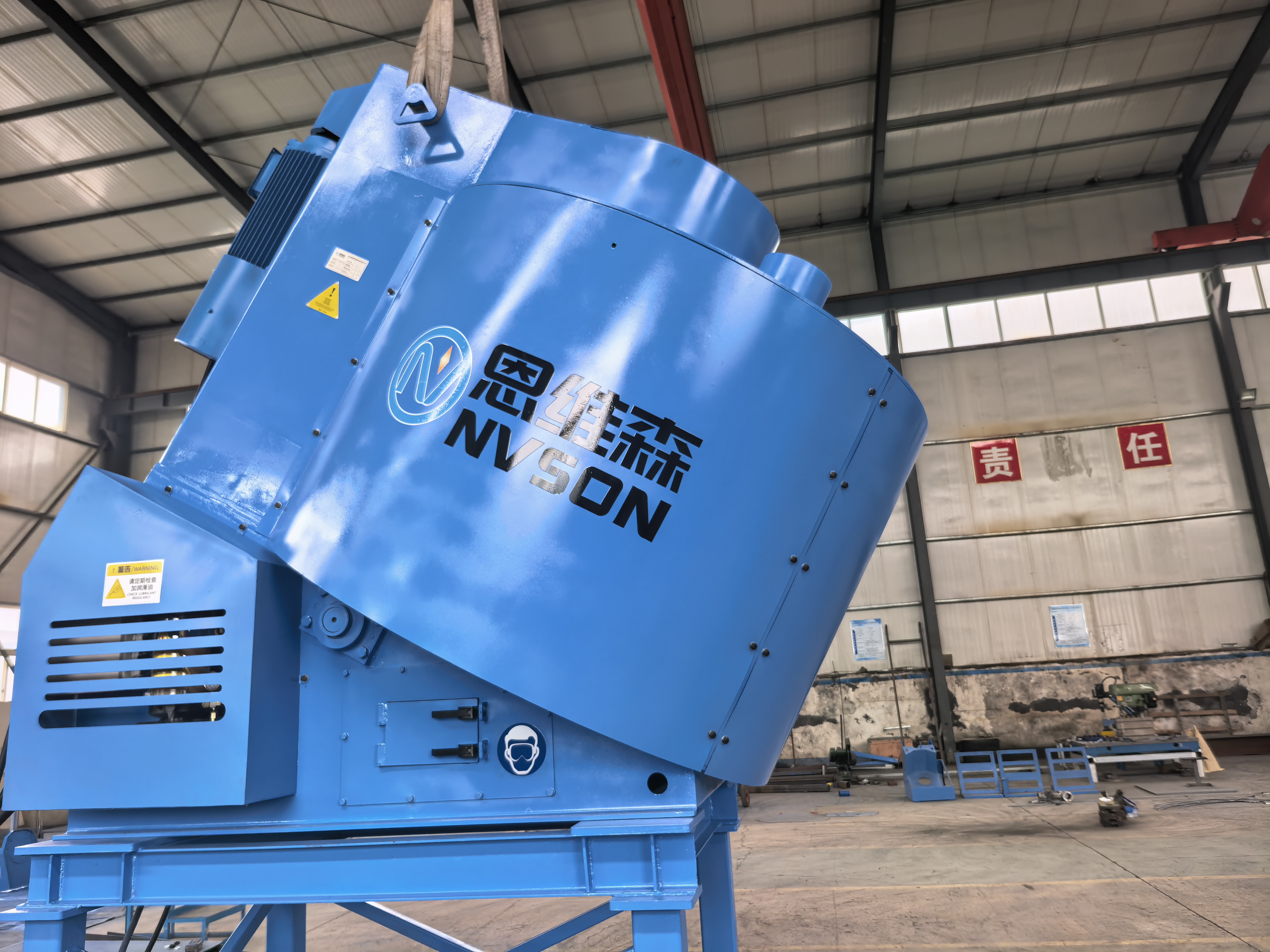

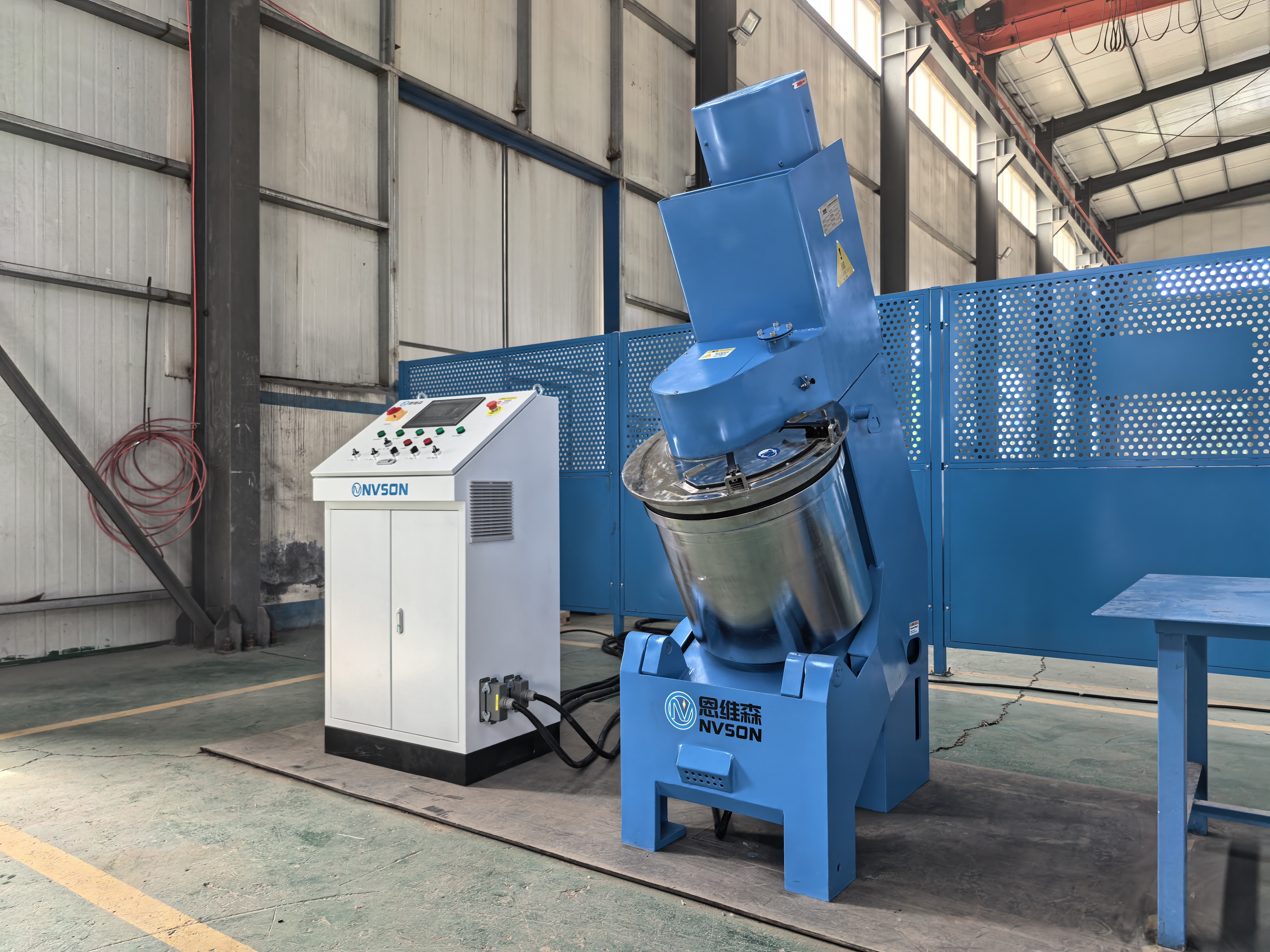

The unique inclined tank structure is the foundation of consistent granulation. Unlike horizontal or vertical mixing vessels that trap static material layers at corners, the tilting mixing granulator creates a continuous three-dimensional turbulent flow field combining gravity tumbling, container rotation and high-speed rotor shearing. Every powder particle moves through circulation, diffusion and kneading without dead zones inside the chamber. Each material fraction receives identical mixing, wetting and agglomeration force, so the binder and active additives disperse evenly across all particles. This mechanical advantage eliminates local over-granulation and under-granulation, the two main sources of uneven particle distribution on conventional granulation lines.
Precision liquid spraying system matches granule growth control. For wet granulation processes, binder addition timing, flow rate and atomization effect heavily influence granule formation. The tilting mixing granulator supports synchronized quantitative spraying during mixing cycles. The fine mist of binding liquid spreads uniformly among moving powders instead of gathering in one spot to form large lumps. Operators can adjust spraying volume, mixing speed and tilting parameters according to material formula, to target the required granule size distribution. Whether users need fine micro-granules below 0.5 mm or dense pellets up to 8 mm, the machine can stabilize the particle size curve within a narrow tolerance range.
Consistent granule strength reduces secondary crushing in post-processing. Poorly formed soft granules tend to collapse when transported through conveyors or vibratory screens, producing extra fines that must be recycled or discarded. The controlled kneading action inside the tilting mixing granulator builds compact, homogeneous internal structures for each granule. Finished pellets feature regular spherical shape and balanced density, resisting breakage during screening, packaging and feeding into kilns or reactors. Less broken powder means fewer rework loops, higher usable output and cleaner downstream production lines free from unpredictable fine powder contamination.
Batch-to-batch reproducibility simplifies quality control workflows. High-end material factories run strict QC sampling after every granulation batch. When granule properties shift randomly between runs, laboratories spend extra hours on particle size analysis, density testing and composition verification, delaying production release. The tilting mixing granulator stores complete process recipes including mixing duration, rotor speed, tilt angle and binder dosage. Once validated parameters are locked, subsequent batches reproduce the same granule characteristics reliably. This repeatability helps manufacturers meet tight quality specifications for export-grade ceramics, battery cathode precursors and refractory castables, and makes certification audits much easier.
Better granule uniformity optimizes sintering and reaction results. In ceramic and refractory production, uniform granules pack more evenly inside molds, avoiding density gaps that cause cracking and deformation after firing. For lithium ion and solid-state battery materials, evenly sized granules improve electrolyte infiltration and consistent electrochemical performance across electrode layers. Catalyst carriers made with the tilting mixing granulator maintain stable specific surface area and pore distribution, ensuring steady conversion efficiency in continuous chemical reactors. The value of precise granulation extends far beyond the granulation station itself, lifting the performance and yield of the whole manufacturing chain.
Adaptable formulation handling supports advanced material R&D. Many new material developers test multiple binder ratios and granule targets in pilot workshops. The tilting mixing granulator maintains its uniform granulation performance across diverse powder systems, from oxide ceramics and silicon carbide powder to graphite composites and mineral fillers. It works well both for small laboratory batches and scaled-up industrial production, helping technical teams transfer proven formulas smoothly from R&D to mass production without dramatic quality drift during scale-up.
For manufacturers competing on premium material quality, stable granule consistency is a decisive competitive edge. By removing mixing dead spots, synchronizing binder atomization, forming robust dense pellets and delivering reliable batch replication, the tilting mixing granulator helps powder processors cut rejection rates, simplify quality inspection and unlock stable high performance in sintering, thermal treatment and chemical conversion. It is the ideal granulation solution for factories where uniform, predictable particle quality defines product success.
